87227-7
Manufacturer:
TE Connectivity
Mfr.Part #:
87227-7
Datasheet:
Description:

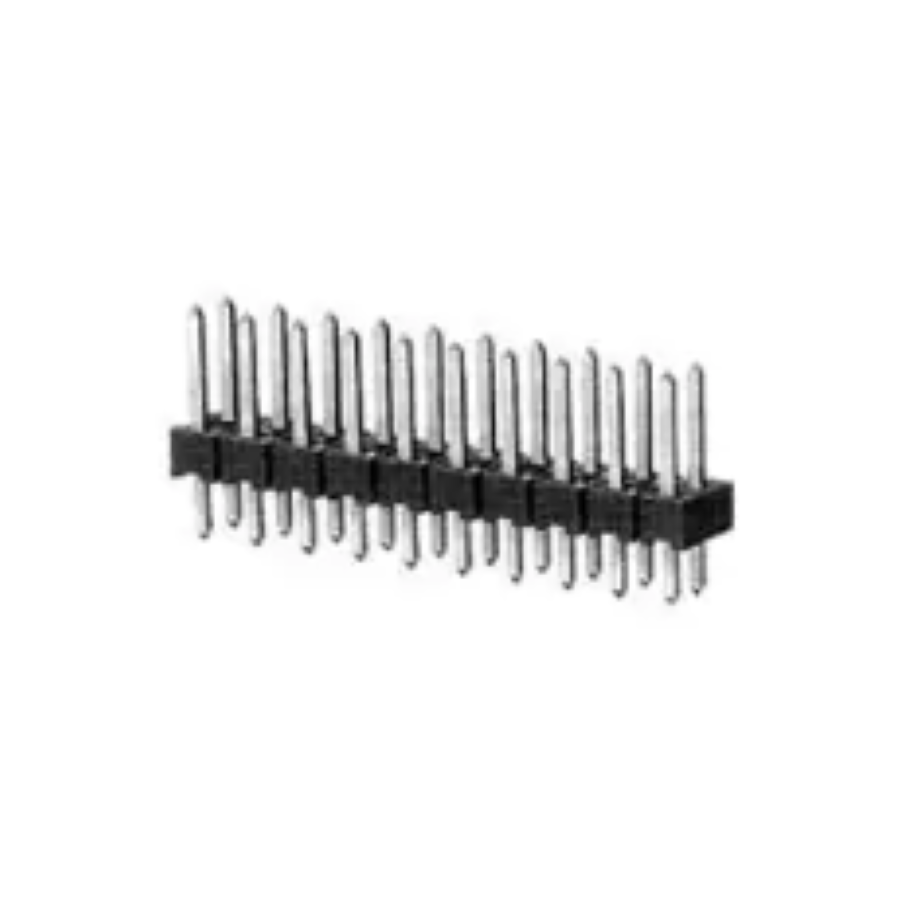

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:14 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.84 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Height | 7.62 mm |
| Packaging | Bulk |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 14 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Resistance | 12 mΩ |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Contact Mating Length | 8.0772 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.397 mm |
| Contact Gender | Male |
| High Temperature Housing | No |
| Mating Post Length | 8.08 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 3.18 mm |
Stock: 177
Distributors
pcbx
pcbxUnit Price$3.32910
Ext.Price$3.32910
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.32910 | $3.32910 |
| 10 | $3.11023 | $31.10230 |
| 25 | $3.09137 | $77.28425 |
| 50 | $3.07262 | $153.63100 |
| 100 | $2.61609 | $261.60900 |
| 300 | $2.48453 | $745.35900 |
| 500 | $2.35960 | $1179.80000 |
| 1000 | $2.24077 | $2240.77000 |
